CF 1/2 NS McGILL View larger

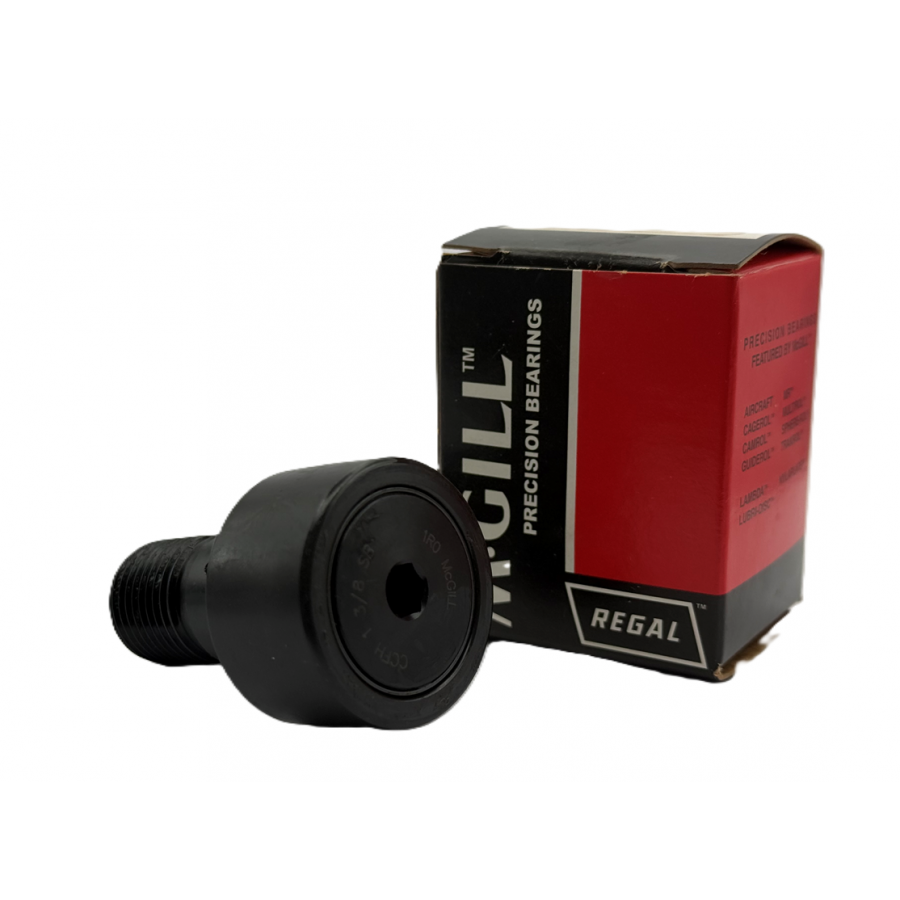

CCFH ... McGILL

Heavy Stud Cylindrical Inch Cam Followers
- Full complement needle rollers
- Crowned OD
- Sealed

Available options:
- Screw driver slotted or Hex hole
- Stainless steel

Online Shop

More details

Download

More info

Designation:
S - Sealed
B - Hex hole
Without "B" Suffix -  Screw driver slotted
CR - Stainless steel

The McGill catalog can be downloaded in the CATALOGS tab.
Part numbers
Screw driver slotted Hex hole*
CCFH 1/2 S CCFH 1/2 SB
CCFH 9/16 S CCFH 9/16 SB
CCFH 5/8 S CCFH 5/8 SB
CCFH 11/16 S CCFH 11/16 SB
CCFH 3/4 S CCFH 3/4 SB
CCFH 7/8 S CCFH 7/8 SB
CCFH 1 S CCFH 1 SB
CCFH 1-1/8 S CCFH 1-1/8 SB
CCFH 1-1/4 S CCFH 1-1/4 SB
CCFH 1-3/8 S CCFH 1-3/8 SB
CCFH 1-1/2 S CCFH 1-1/2 SB
CCFH 1-5/8 S CCFH 1-5/8 SB
CCFH 1-3/4 S CCFH 1-3/4 SB
CCFH 1-7/8 S CCFH 1-7/8 SB
CCFH 2 S CCFH 2 SB
CCFH 2-1/4 S CCFH 2-1/4 SB
CCFH 2-1/2 S CCFH 2-1/2 SB
CCFH 2-3/4 S CCFH 2-3/4  SB
CCFH 3 S CCFH 3 SB
CCFH 3-1/4 S CCFH 3-1/4 SB
CCFH 3-1/2 S CCFH 3-1/2 SB
CCFH 4 S CCFH 4 SB
  CCFH 5 S
  CCFH 6 S
  CCFH 7 S
*Hex hole standard on sizes above CCFH-4-SB.
McGill Torrington
Screw driver slotted Hex hole Screw driver slotted Hex hole
CCFH 1/2 S CCFH 1/2 SB CRHSC 8-1 CRHSBC 8-2
CCFH 9/16 S CCFH 9/16 SB - -
CCFH 5/8 S CCFH 5/8 SB CRHSC 10-1 CRHSBC 10-1
CCFH 11/16 S CCFH 11/16 SB - CRHSBC 11
CCFH 3/4 S CCFH 3/4 SB CRHSC 12 CRHSBC 12
CCFH 7/8 S CCFH 7/8 SB CRHSC 14 CRHSBC 14
CCFH 1 S CCFH 1 SB CRHSC 16 CRHSBC 16
CCFH 1-1/8 S CCFH 1-1/8 SB CRHSC 18 CRHSBC 18
CCFH 1-1/4 S CCFH 1-1/4 SB CRHSC 20 CRHSBC 20
CCFH 1-3/8 S CCFH 1-3/8 SB CRHSC 22 CRHSBC 22
CCFH 1-1/2 S CCFH 1-1/2 SB CRHSC 24 CRHSBC 24
CCFH 1-5/8 S CCFH 1-5/8 SB CRHSC 26 CRHSBC 26
CCFH 1-3/4 S CCFH 1-3/4 SB CRHSC 28 CRHSBC 28
CCFH 1-7/8 S CCFH 1-7/8 SB CRHSC 30 CRHSBC 30
CCFH 2 S CCFH 2 SB CRHSC 32 CRHSBC 32
CCFH 2-1/4 S CCFH 2-1/4 SB CRHSC 36 CRHSBC 36
CCFH 2-1/2 S CCFH 2-1/2 SB CRHSC 40 CRHSBC 40
CCFH 2-3/4 S CCFH 2-3/4  SB CRHSC 44 CRHSBC 44
CCFH 3 S CCFH 3 SB CRHSC 48 CRHSBC 48
CCFH 3-1/4 S CCFH 3-1/4 SB  CRHSC 52 CRHSBC 52
CCFH 3-1/2 S CCFH 3-1/2 SB  CRHSC 56 CRHSBC 56
CCFH 4 S CCFH 4 SB CRHSC 64 CRHSBC 64
  CCFH 5 S - CRHSBC 80
  CCFH 6 S - CRHSBC 96
  CCFH 7 S - CRHSBC 112
