CCF ... McGILL

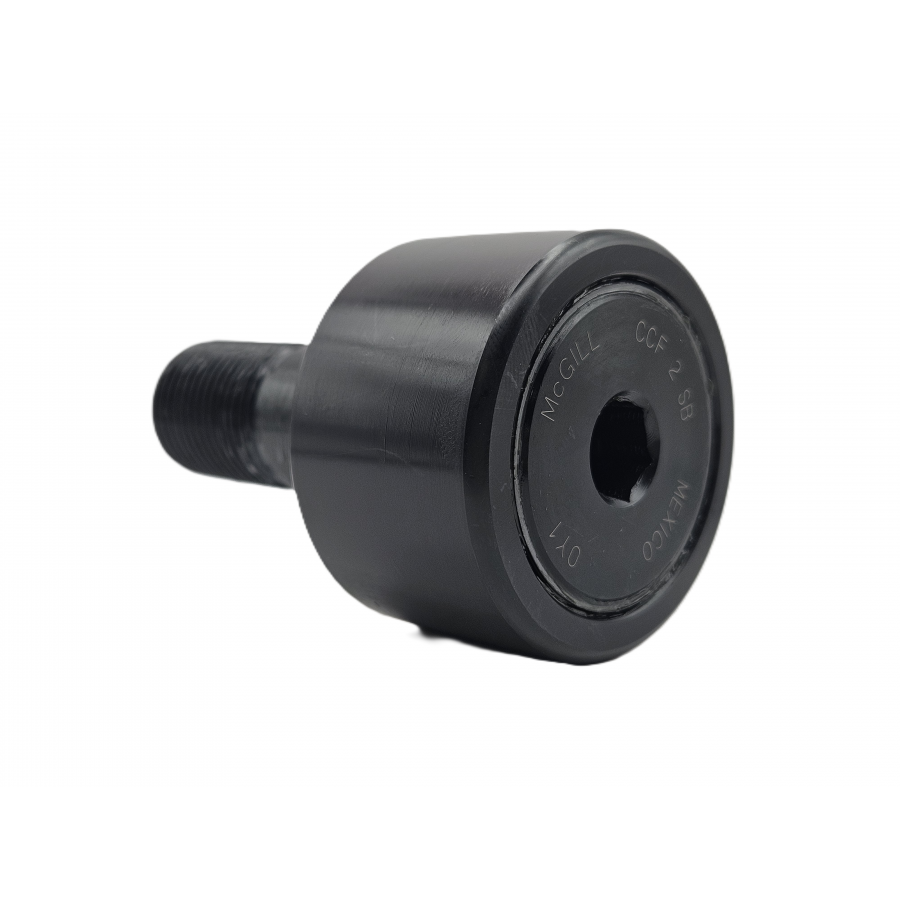

Standard Stud Cylindrical Inch Cam Followers
- Full complement needle rollers
- Crowned OD
- Sealed
Available options:
- Screw driver slotted or Hex hole
- Narrow roller width
- Stainless steel
Online Shop
- Full complement needle rollers
- Crowned OD
- Sealed
Available options:
- Screw driver slotted or Hex hole
- Narrow roller width
- Stainless steel
Online Shop
Download
More info
Designation:
S - Sealed
B - Hex hole
N - Narrow roller width
Without "B" Suffix - Screw driver slotted
CR - Stainless steel
The McGill catalog can be downloaded in the CATALOGS tab.
S - Sealed
B - Hex hole
N - Narrow roller width
Without "B" Suffix - Screw driver slotted
CR - Stainless steel
The McGill catalog can be downloaded in the CATALOGS tab.
| Part numbers | |
| Screw driver slotted | Hex hole* |
| CCF 1/2 NS | CCF 1/2 NSB |
| CCF 1/2 S | CCF 1/2 SB |
| CCF 9/16 S | CCF 9/16 SB |
| CCF 5/8 NS | CCF 5/8 NSB |
| CCF 5/8 S | CCF 5/8 SB |
| CCF 11/16 S | CCF 11/16 SB |
| CCF 3/4 S | CCF 3/4 SB |
| CCF 7/8 S | CCF 7/8 SB |
| CCF 1 S | CCF 1 SB |
| CCF 1-1/8 S | CCF 1-1/8 SB |
| CCF 1-1/4 S | CCF 1-1/4 SB |
| CCF 1-3/8 S | CCF 1-3/8 SB |
| CCF 1-1/2 S | CCF 1-1/2 SB |
| CCF 1-5/8 S | CCF 1-5/8 SB |
| CCF 1-3/4 S | CCF 1-3/4 SB |
| CCF 1-7/8 S | CCF 1-7/8 SB |
| CCF 2 S | CCF 2 SB |
| CCF 2-1/4 S | CCF 2-1/4 SB |
| CCF 2-1/2 S | CCF 2-1/2 SB |
| CCF 2-3/4 S | CCF 2-3/4 SB |
| CCF 3 S | CCF 3 SB |
| CCF 3-1/4 S | CCF 3-1/4 SB |
| CCF 3-1/2 S | CCF 3-1/2 SB |
| CCF 4 S | CCF 4 SB |
| CCF 5 S | |
| CCF 6 S | |
| CCF 7 S | |
| CCF 8 S | |
| CCF 9 S | |
| CCF 10 S | |
| *Hex hole standard on sizes above CCF-4-SB. |
|
| McGill | Torrington | ||
| Screw driver slotted | Hex hole | Screw driver slotted | Hex hole |
| CCF 1/2 NS | CCF 1/2 NSB | - | - |
| CCF 1/2 S | CCF 1/2 SB | CRSC 8-1 | CRSBC 8-1 |
| CCF 9/16 S | CCF 9/16 SB | - | - |
| CCF 5/8 NS | CCF 5/8 NSB | - | - |
| CCF 5/8 S | CCF 5/8 SB | CRSC 10-1 | CRSBC 10-1 |
| CCF 11/16 S | CCF 11/16 SB | - | - |
| CCF 3/4 S | CCF 3/4 SB | CRSC 12 | CRSBC 12 |
| CCF 7/8 S | CCF 7/8 SB | CRSC 14 | CRSBC 14 |
| CCF 1 S | CCF 1 SB | CRSC 16 | CRSBC 16 |
| CCF 1-1/8 S | CCF 1-1/8 SB | CRSC 18 | CRSBC 18 |
| CCF 1-1/4 S | CCF 1-1/4 SB | CRSC 20 | CRSBC 20 |
| CCF 1-3/8 S | CCF 1-3/8 SB | CRSC 22 | CRSBC 22 |
| CCF 1-1/2 S | CCF 1-1/2 SB | CRSC 24 | CRSBC 24 |
| CCF 1-5/8 S | CCF 1-5/8 SB | CRSC 26 | CRSBC 26 |
| CCF 1-3/4 S | CCF 1-3/4 SB | CRSC 28 | CRSBC 28 |
| CCF 1-7/8 S | CCF 1-7/8 SB | CRSC 30 | CRSBC 30 |
| CCF 2 S | CCF 2 SB | CRSC 32 | CRSBC 32 |
| CCF 2-1/4 S | CCF 2-1/4 SB | CRSC 36 | CRSBC 36 |
| CCF 2-1/2 S | CCF 2-1/2 SB | CRSC 40 | CRSBC 40 |
| CCF 2-3/4 S | CCF 2-3/4 SB | CRSC 44 | CRSBC 44 |
| CCF 3 S | CCF 3 SB | CRSC 48 | CRSBC 48 |
| CCF 3-1/4 S | CCF 3-1/4 SB | CRSC 52 | CRSBC 52 |
| CCF 3-1/2 S | CCF 3-1/2 SB | CRSC 56 | CRSBC 56 |
| CCF 4 S | CCF 4 SB | CRSC 64 | CRSBC 64 |
