Stud type

PRODUCTS

View larger

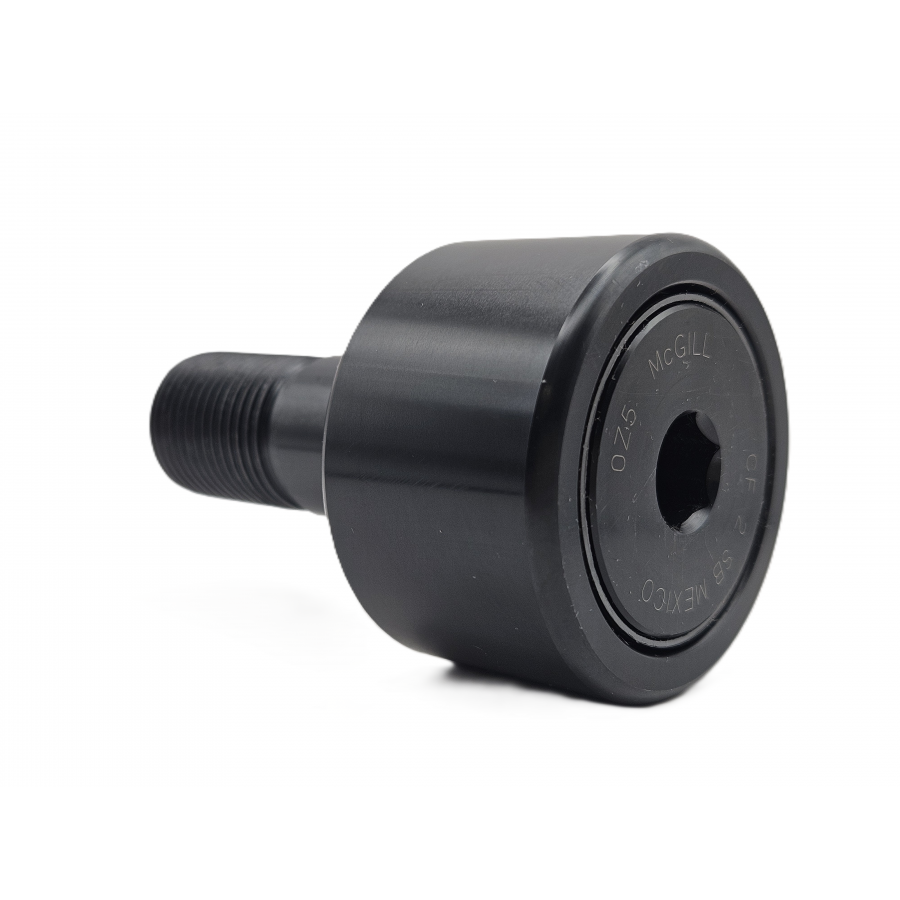

CF ... McGILL

Standard Stud Cylindrical Inch Cam Followers
- Full complement needle rollers
- Cylindrical OD

Available options:
- Sealed or Unsealed
- Screw driver slotted or Hex hole
- Narrow roller width
- Stainless steel

Online Shop

More details

Download

CF McGILL

Download (40.75k)

More info

Designation:
S - Sealed
B - Hex hole
N - Narrow roller width
Without "S" Suffix - Unsealed
Without "B" Suffix - Screw driver slotted
CR - Stainless steel

The McGill catalog can be downloaded in the CATALOGS tab.

CF McGILL
Interchangeability Chart

Part numbers
Screw driver slotted		Hex hole*
Unsealed	Sealed	Unsealed	Sealed
CF 1/2 N	CF 1/2 N S	CF 1/2 N B	CF 1/2 N SB
CF 1/2	CF 1/2 S	CF 1/2 B	CF 1/2 SB
CF 9/16	CF 9/16 S	CF 9/16 B	CF 9/16 SB
CF 5/8 N	CF 5/8 N S	CF 5/8 N B	CF 5/8 N SB
CF 5/8	CF 5/8 S	CF 5/8 B	CF 5/8 SB
CF 11/16	CF 11/16 S	CF 11/16 B	CF 11/16 SB
CF 3/4	CF 3/4 S	CF 3/4 B	CF 3/4 SB
CF 7/8	CF 7/8 S	CF 7/8 B	CF 7/8 SB
CF 1	CF 1 S	CF 1 B	CF 1 SB
CF 1-1/8	CF 1-1/8 S	CF 1-1/8 B	CF 1-1/8 SB
CF 1-1/4	CF 1-1/4 S	CF 1-1/4 B	CF 1-1/4 SB
CF 1-3/8	CF 1-3/8 S	CF 1-3/8 B	CF 1-3/8 SB
CF 1-1/2	CF 1-1/2 S	CF 1-1/2 B	CF 1-1/2 SB
CF 1-5/8	CF 1-5/8 S	CF 1-5/8 B	CF 1-5/8 SB
CF 1-3/4	CF 1-3/4 S	CF 1-3/4 B	CF 1-3/4 SB
CF 1-7/8	CF 1-7/8 S	CF 1-7/8 B	CF 1-7/8 SB
CF 2	CF 2 S	CF 2 B	CF 2 SB
CF 2-1/4	CF 2-1/4 S	CF 2-1/4 B	CF 2-1/4 SB
CF 2-1/2	CF 2-1/2 S	CF 2-1/2 B	CF 2-1/2 SB
CF 2-3/4	CF 2-3/4 S	CF 2-3/4 B	CF 2-3/4 SB
CF 3	CF 3 S	CF 3 B	CF 3 SB
CF 3-1/4	CF 3-1/4 S	CF 3-1/4 B	CF 3-1/4 SB
CF 3-1/2	CF 3-1/2 S	CF 3-1/2 B	CF 3-1/2 SB
CF 4	CF 4 S	CF 4 B	CF 4 SB
			CF 5 S
			CF 6 S
			CF 7 S
			CF 8 S
			CF 9 S
			CF 10 S
*Hex hole standard on sizes above CF-4-SB.

McGill		Torrington
Unsealed	Sealed	Unsealed	Sealed
CF 1/2 N	CF 1/2 NS	-	-
CF 1/2	CF 1/2 S	CR 8-1	CRS 8-1
CF 9/16	CF 9/16 S	-	-
CF 5/8 N	CF 5/8 NS	-	-
CF 5/8	CF 5/8 S	CR 10-1	CRS 10-1
CF 11/16	CF 11/16 S	-	-
CF 3/4	CF 3/4 S	CR 12	CRS 12
CF 7/8	CF 7/8 S	CR 14	CRS 14
CF 1	CF 1 S	CR 16	CRS 16
CF 1-1/8	CF 1-1/8 S	CR 18	CRS 18
CF 1-1/4	CF 1-1/4 S	CR 20	CRS 20
CF 1-3/8	CF 1-3/8 S	CR 22	CRS 22
CF 1-1/2	CF 1-1/2 S	CR 24	CRS 24
CF 1-5/8	CF 1-5/8 S	CR 26	CRS 26
CF 1-3/4	CF 1-3/4 S	CR 28	CRS 28
CF 1-7/8	CF 1-7/8 S	CR 30	CRS 30
CF 2	CF 2 S	CR 32	CRS 32
CF 2-1/4	CF 2-1/4 S	CR 36	CRS 36
CF 2-1/2	CF 2-1/2 S	CR 40	CRS 40
CF 2-3/4	CF 2-3/4 S	CR 44	CRS 44
CF 3	CF 3 S	CR 48	CRS 48
CF 3-1/4	CF 3-1/4 S	CR 52	CRS 52
CF 3-1/2	CF 3-1/2 S	CR 56	CRS 56
CF 4	CF 4 S	CR 64	CRS 64
